Problem with the transport conveyor

Customerernesto. mx@mass. com. sg

CompanyNot indexed

Priority2

TypeAOI - No Action Required

UpdatedMar 26, 2026 at 3:48 PM

Thread9 messages

Ticket metadata

Group: AOI MX (150000422415)
Status: Waiting for Customer (6)
Created: Mar 4, 2026 at 2:29 PM
Requester: ernesto. mx@mass. com. sg <ernesto.mx@mass.com.sg>
Company: Not indexed
Last synced: Aug 8, 2026 at 7:05 PM
Resolved: N/A
Closed: N/A
Tags: A - AOI CASE ACK SP, A - 1 Hour Delay rslv, A-REOPEN, A - Reply Open

Current case

Customer issue

Hello and good morning, Juan-san, Today at Katolec we got a problem with the transport conveyor after CKD machine (line 5), the inspection for CKD send OK, but when pass to the conveyor this one send NG PCB detect, and i don't know why this happened, YJ-Link member said you did a some special setting in the communication cable SNEMA, i want too know if you have some information about that and can share, thanks for the inconvenience and have a nice day. [cid:9b96973e-8ee6-4126-8645-bd626242eda2] ---------------------------------MASS--------------------------------------------- MASS TRADING MEXICANA SA DE CV J. Ernesto Olvera Service Engineer Blvd. Bernardo Quintana 7001 Torre II suite 1002 Querétaro CP 76090 Tel: +52 ([phone] Email: [email] Website: http://www.mass.co.jp -----------------------------------------------------------------------------------------------

Conversation

Engineer and customer thread

9 messages

Francisco Villalpando Omron reply | Mar 5, 2026 at 11:18 AM

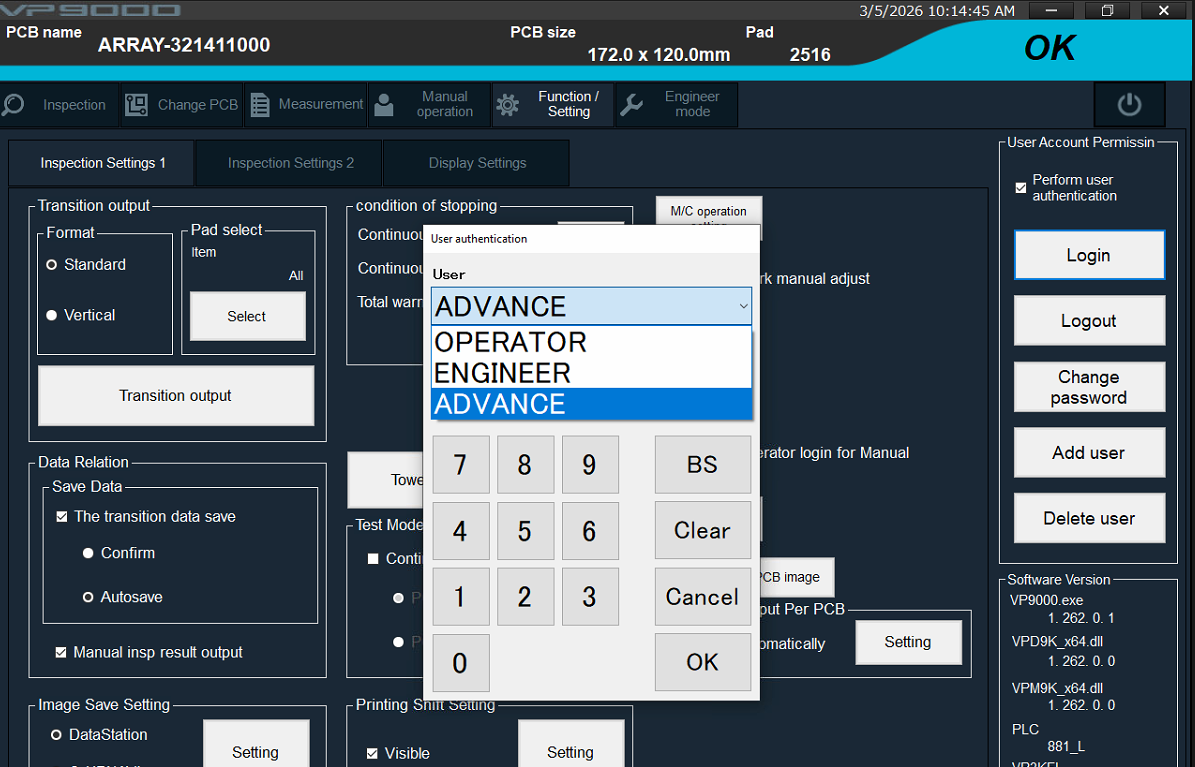

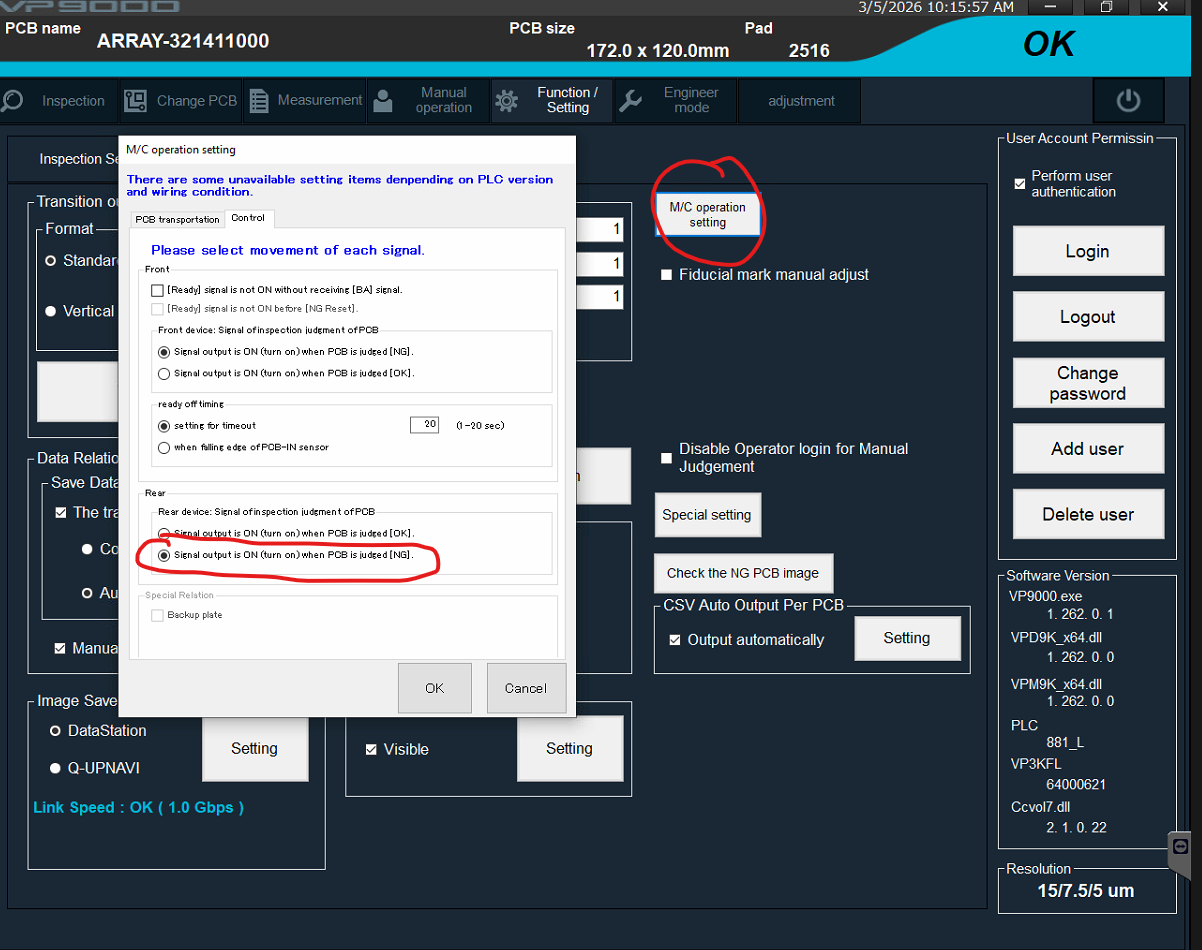

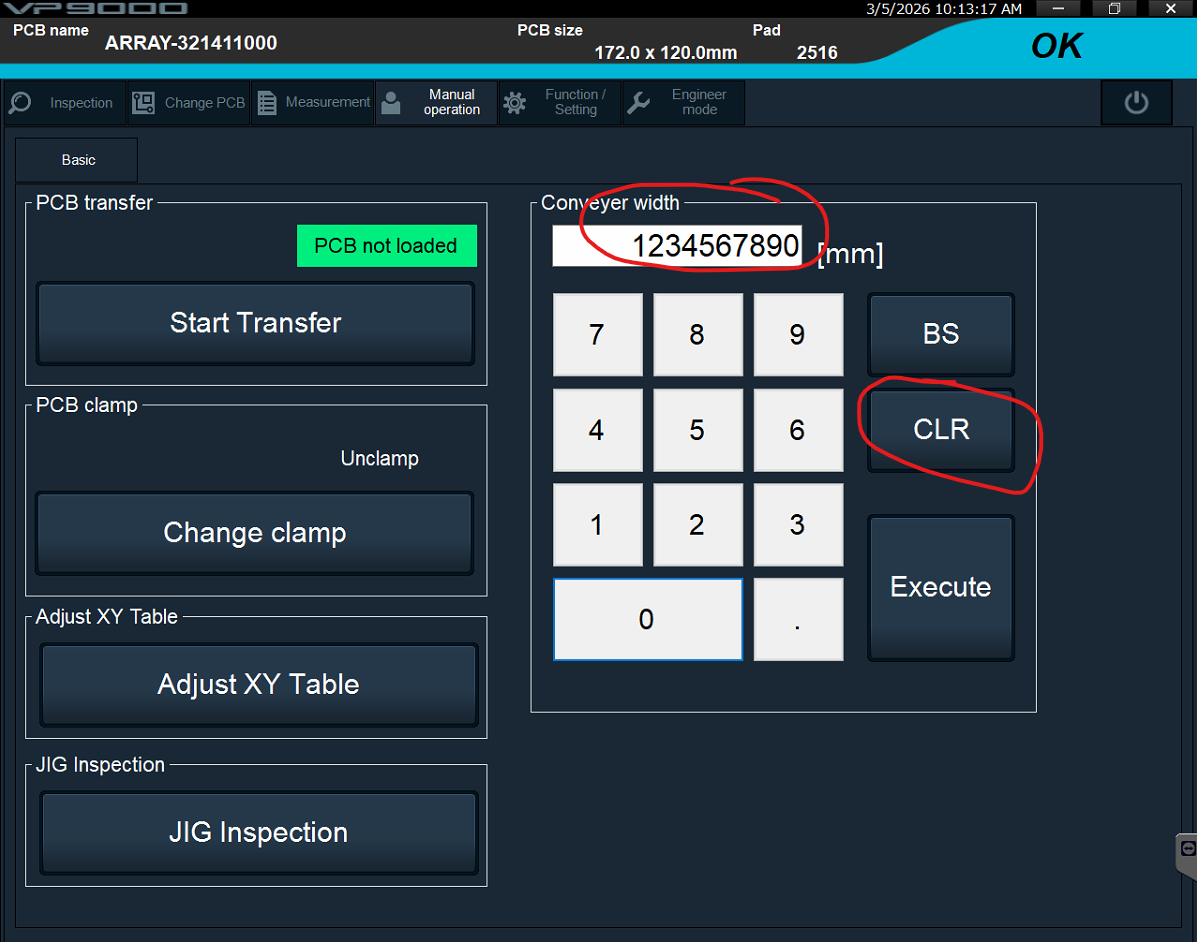

Hola Ernesto., -En la SPI, ve a la seccion, Manual Operation en la parte de conveyor width presiona los botones [phone] y despues CLR -Despues ve a la seccion function setting y has log in usando el usuario Advance (password:0000) -Depues presiona en el boton M/C Operation Setting, en la ventana que aparezca, selecciona la opcion en rojo que se indica en la siguiente imagen. Para finalizar presiona OK y has un ciclo de apagado en el equipo para reflejar los cambios. Francisco Villalpando Engineering Supervisor Direct: +[phone] [email]



Omron internal Private note | Mar 9, 2026 at 2:26 PM

Private

Subject: RE: Problem with the transport conveyor [Caso AOI n.° 1714392] se ha resuelto. Description: Hola Ernesto., Gracias por su reciente consulta. Nos complace informarle que su caso 1714392 ha sido resuelto satisfactoriamente. Como siempre, estamos a su disposición para brindarle el apoyo que necesite. Si requiere asistencia adicional en el futuro, no dude en comunicarse con nosotros a través de nuestro correo electrónico de soporte: [email] En caso de que considere necesario un seguimiento adicional respecto a este caso, le agradeceremos que responda a este mensaje con una breve actualización, y con gusto le brindaremos la asistencia correspondiente. Francisco Javier Villalpando Su grupo de soporte técnico de Omron AOI
Customer Customer reply | Mar 11, 2026 at 12:10 PM

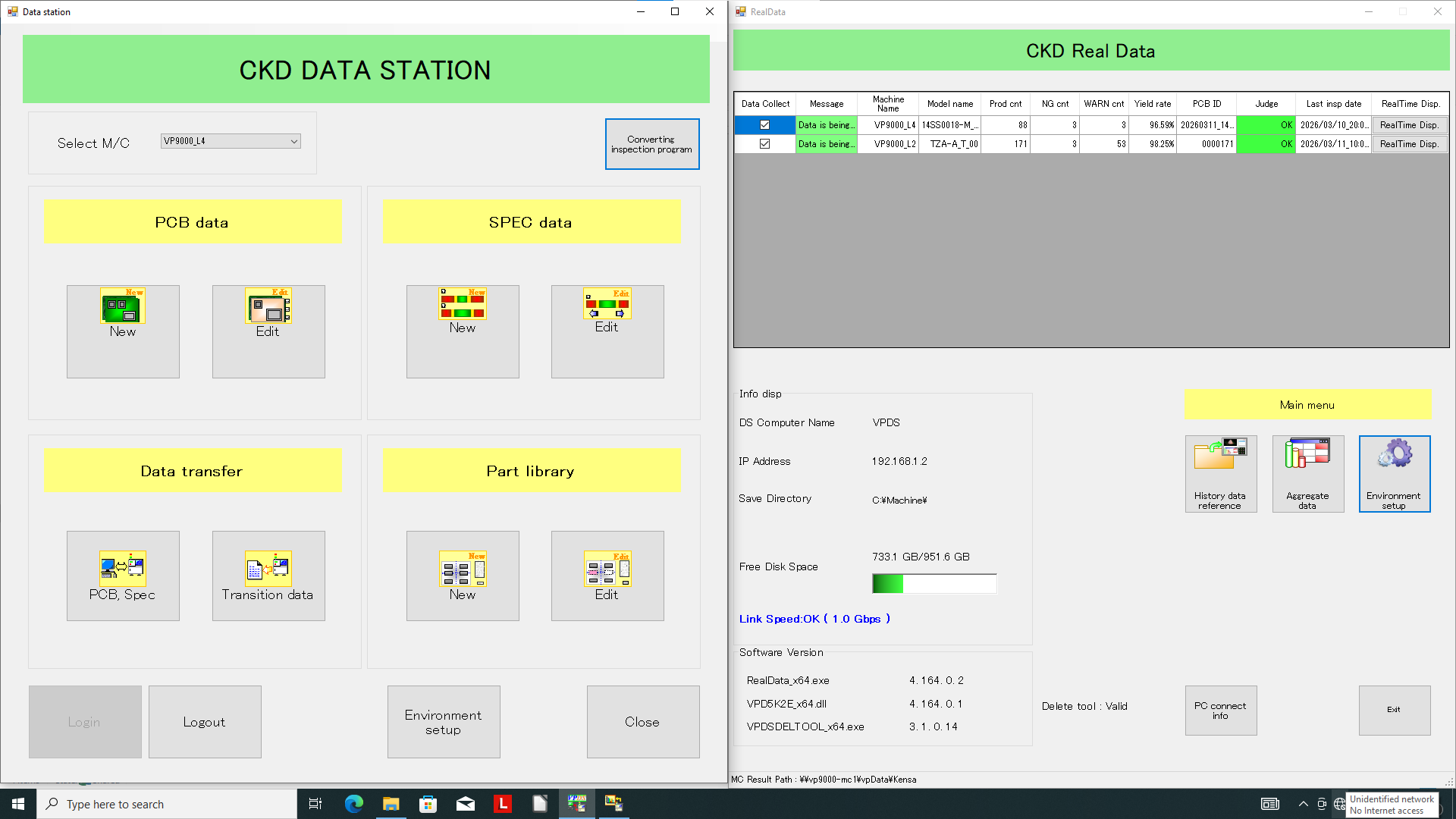

Buen día, Confirmo que el asunto anterior ha quedado resuelto satisfactoriamente. Por otro lado, solicito su asesoría técnica respecto al software CKD. Necesitamos integrar la máquina SPI de la nueva línea (5) al sistema, ya que actualmente solo es posible visualizar las dos máquinas existentes previamente. Adjunto una captura de pantalla del estado actual del servidor para su referencia. Quedo atento a sus instrucciones. Saludos cordiales. ---------------------------------MASS--------------------------------------------- MASS TRADING MEXICANA SA DE CV J. Ernesto Olvera Service Engineer Blvd. Bernardo Quintana 7001 Torre II suite 1002 Querétaro CP 76090 Tel: +52 ([phone] Email: [email] Website: http://www.mass.co.jp ----------------------------------------------------------------------------------------------- ________________________________

Annotation 2026-03-11 100543.png
Juan Lazcano Omron reply | Mar 11, 2026 at 3:10 PM

Hello Ernesto., Podemos tener conexion remota ala VPDS?
Customer Customer reply | Mar 11, 2026 at 6:09 PM

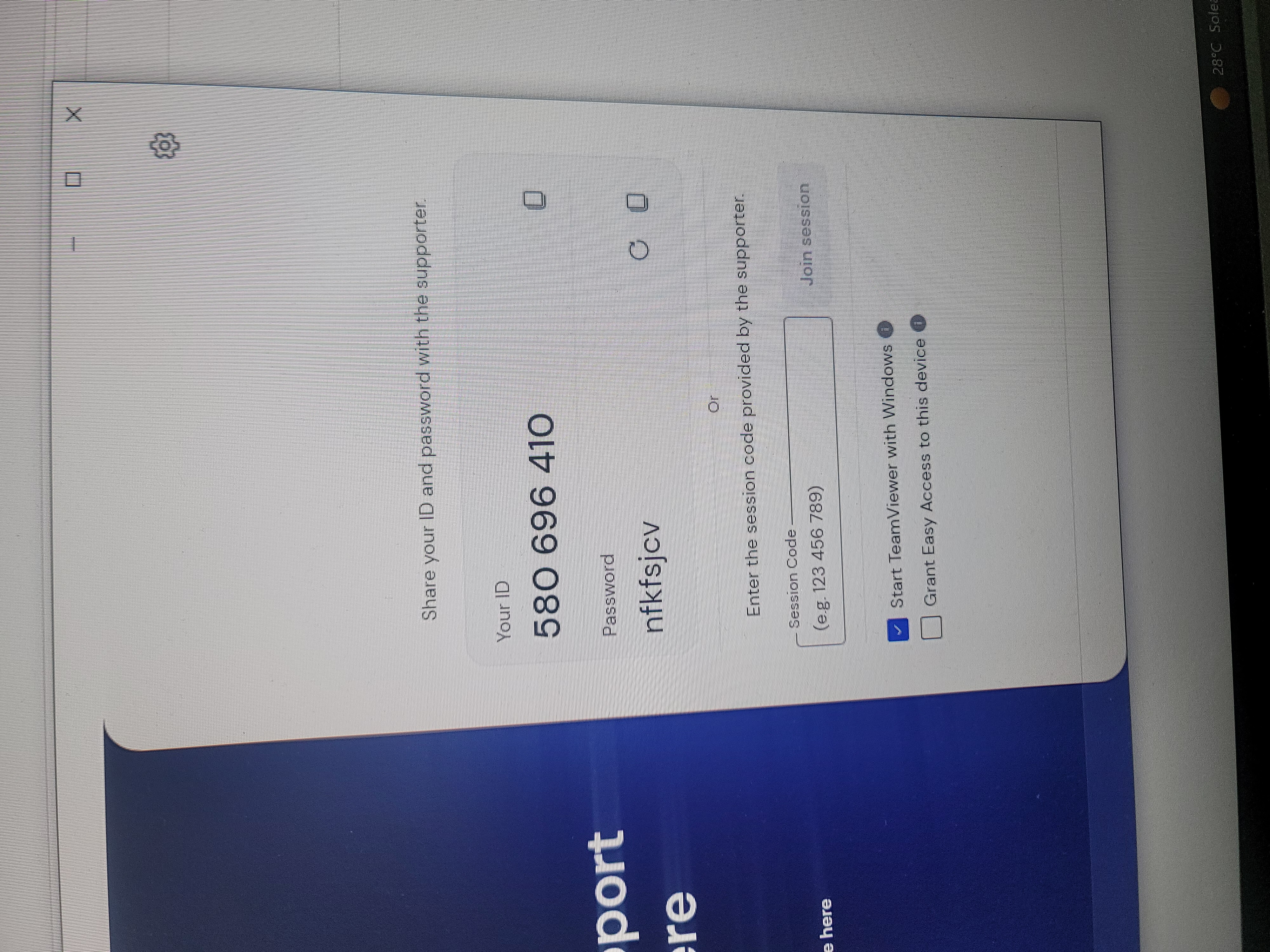

Claro, agrego la foto de Team Viewer. ---------------------------------MASS--------------------------------------------- MASS TRADING MEXICANA SA DE CV J. Ernesto Olvera Service Engineer Blvd. Bernardo Quintana 7001 Torre II suite 1002 Querétaro CP 76090 Tel: +52 ([phone] Email: [email] Website: http://www.mass.co.jp ----------------------------------------------------------------------------------------------- [cid:de7e00e1-b988-4d27-93ed-0b343d42c24e] ________________________________


Customer Customer reply | Mar 12, 2026 at 12:56 PM

---------------------------------MASS--------------------------------------------- MASS TRADING MEXICANA SA DE CV J. Ernesto Olvera Service Engineer Blvd. Bernardo Quintana 7001 Torre II suite 1002 Querétaro CP 76090 Tel: +52 ([phone] Email: [email] Website: http://www.mass.co.jp ----------------------------------------------------------------------------------------------- ________________________________

Francisco Villalpando Private note | Mar 13, 2026 at 5:35 PM

Private

Cual es el status de este Ticket?
Juan Lazcano Private note | Mar 19, 2026 at 12:10 PM

Private

No han querido parar la linea para hacer la conexion a la VPDS, la linea ya arranco he estado en contacto con ernesto de mass para cuando haya una oportunidad hacer la conexion.
Juan Lazcano Omron reply | Mar 26, 2026 at 3:48 PM

Hello Ernesto., hay alguna posibilidad de que nos presten los equipos para terminar la configuracion?
