Current case

Customer issue

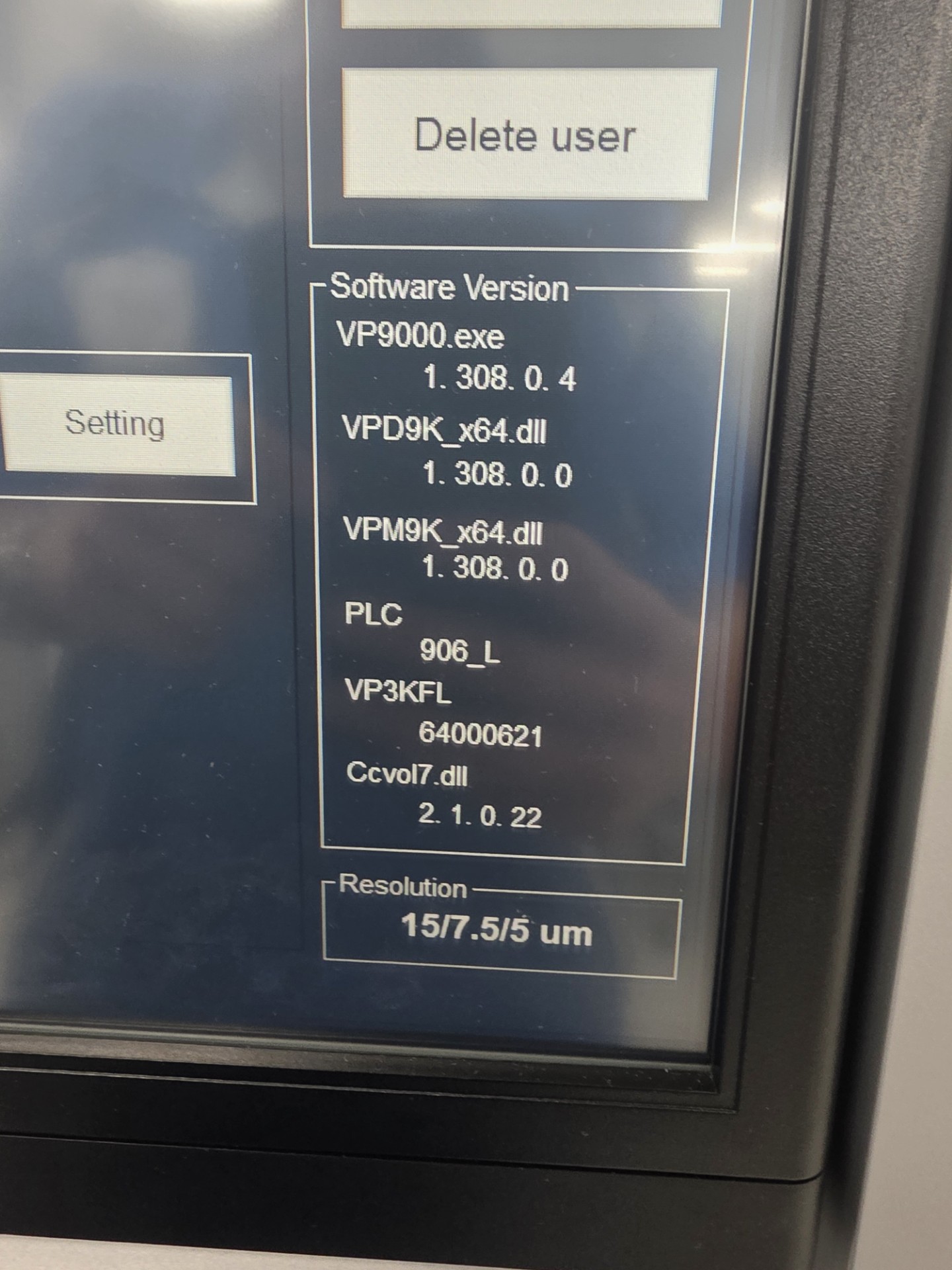

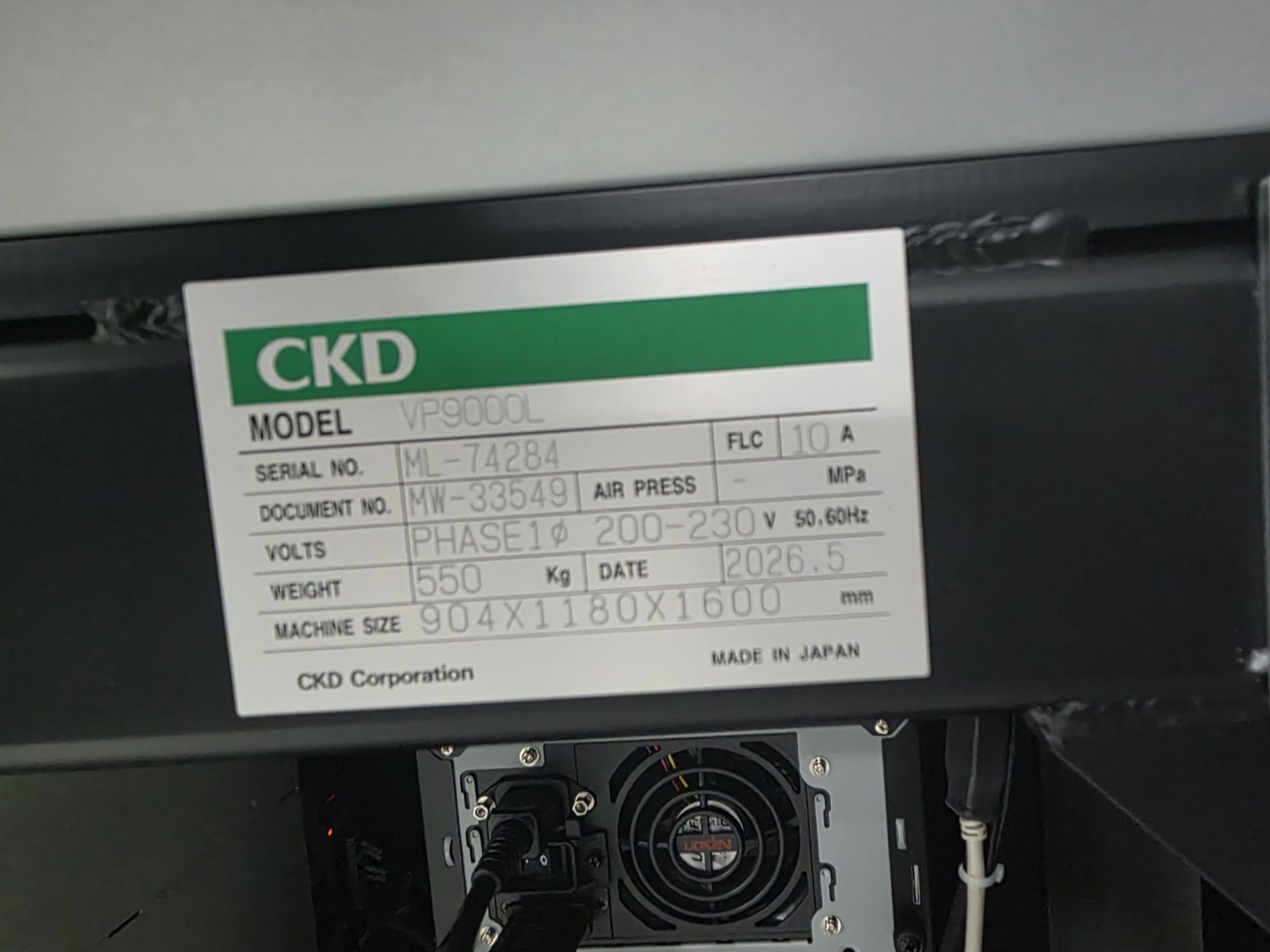

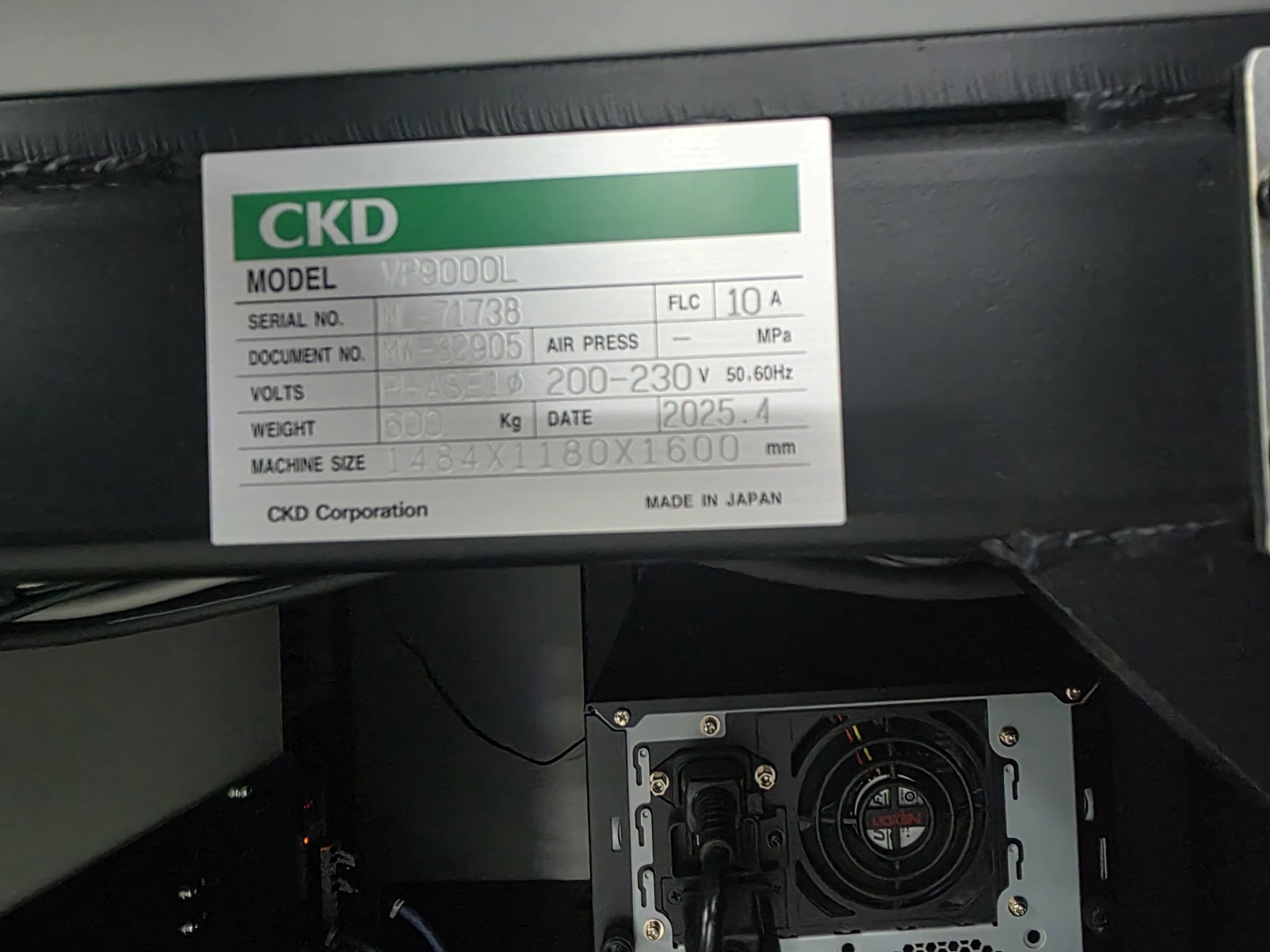

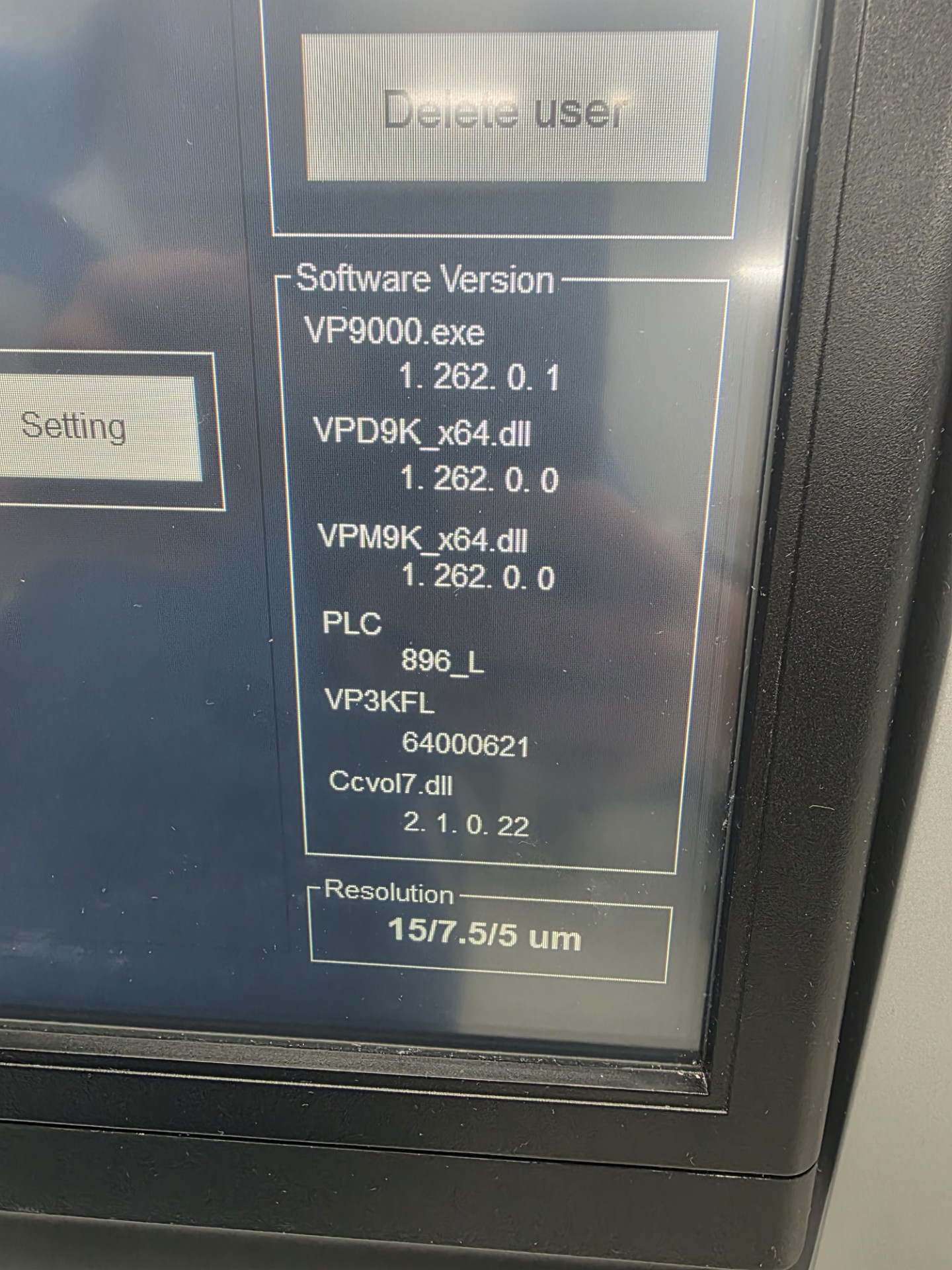

Hi OMRON Team, We are facing an issue with the SPI on our new production line. When a PCB fails inspection and goes to the manual judgement screen, the evaluation buttons (Volume, Area, Height, Position, Bridge, OK/NG) do not appear on the UI. Because these options are missing, operators cannot select whether the defect is real or a false call to complete the inspection process. Please note that this SPI runs a different software/hardware version compared to our other units that are working fine. Could you please check if there is a missing configuration, parameter setting, or user permission level causing this? Let us know what steps we can take to fix it. I have attached screenshots of the issue for your reference. Machine serial number and version with the problem: [cid:1dd566b8-18f6-45fc-a327-4efef6da53b8] [cid:75143d8f-7967-44da-99c1-94c63641b74a] Machine using the correct judge when is detected by NG: [cid:4ca3eb85-f516-4d2c-8484-bbc179029ead] [cid:e9f94a52-c6d8-43e5-be40-a99486e8e80b] ________________________________ J. Ernesto Olvera Service Engineer | MASS TRADING MEXICANA SA DE CV ________________________________ ? Tel: +52 ([phone] ? Email: [email] ? Web: www.mass.co.jp ? Dirección: Blvd. Bernardo Quintana 7001, Torre II, Suite 1002 Querétaro, Qro. CP 76090, México. [cid:d7286b54-8e26-48a8-a0b4-dbecee225a2e]

Conversation

Engineer and customer thread

4 messages

Omron Application Engineer Omron reply | Aug 10, 2026 at 2:37 PM

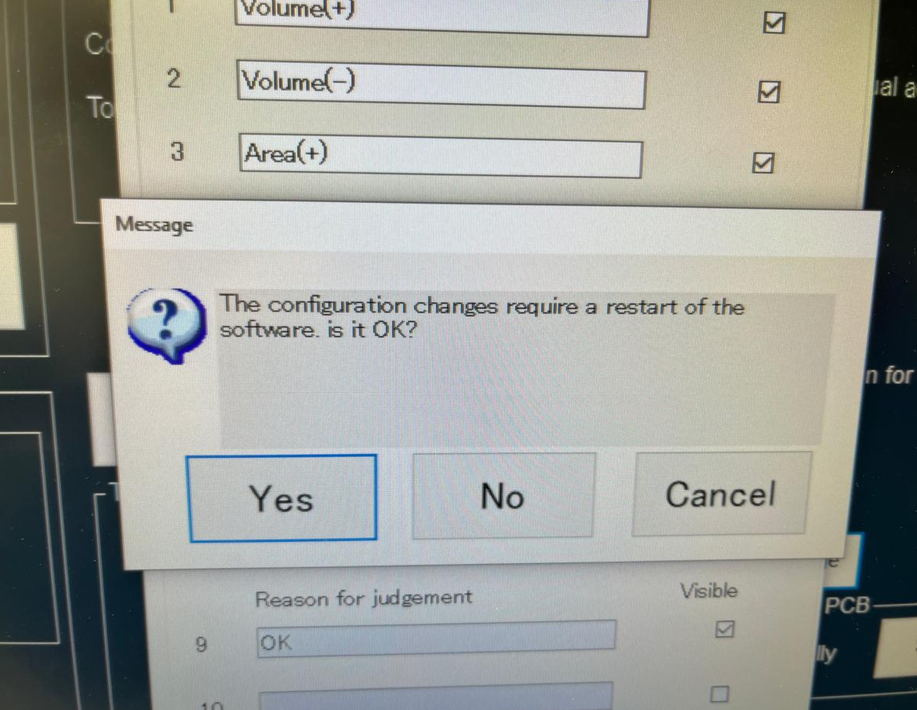

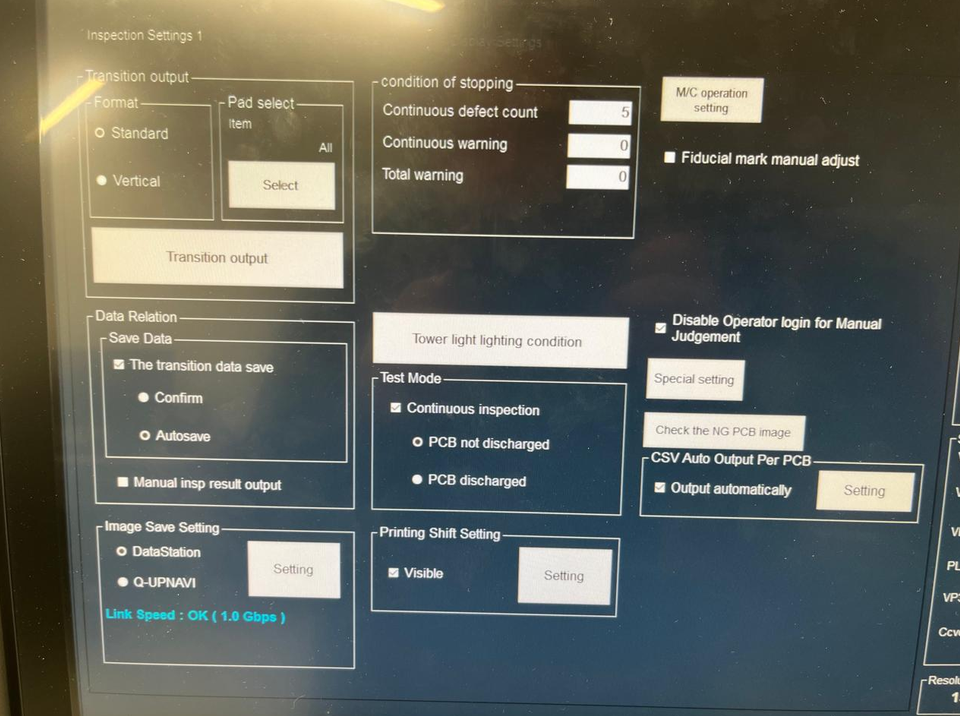

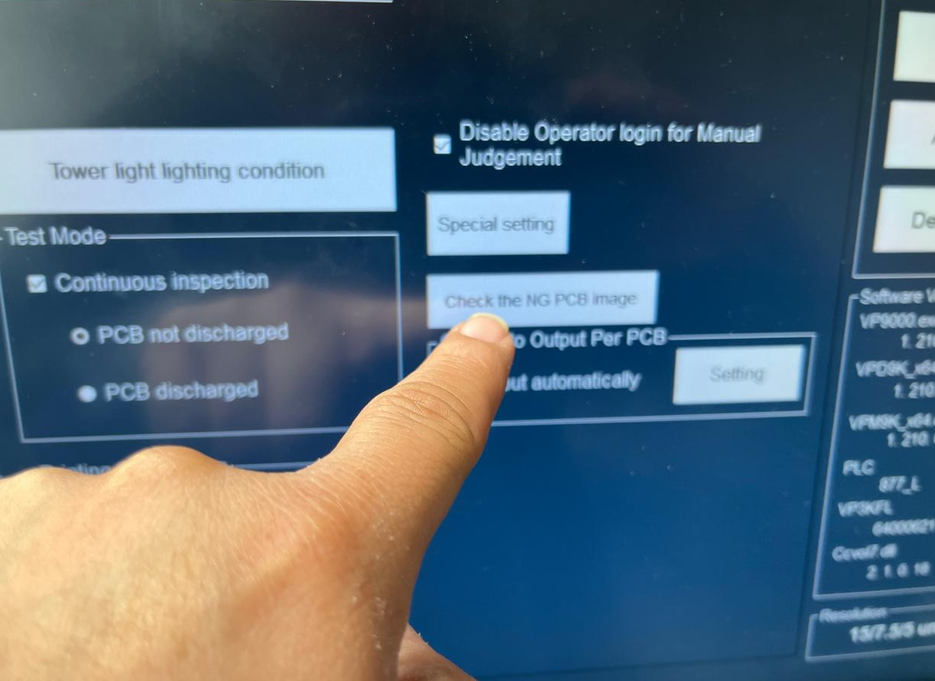

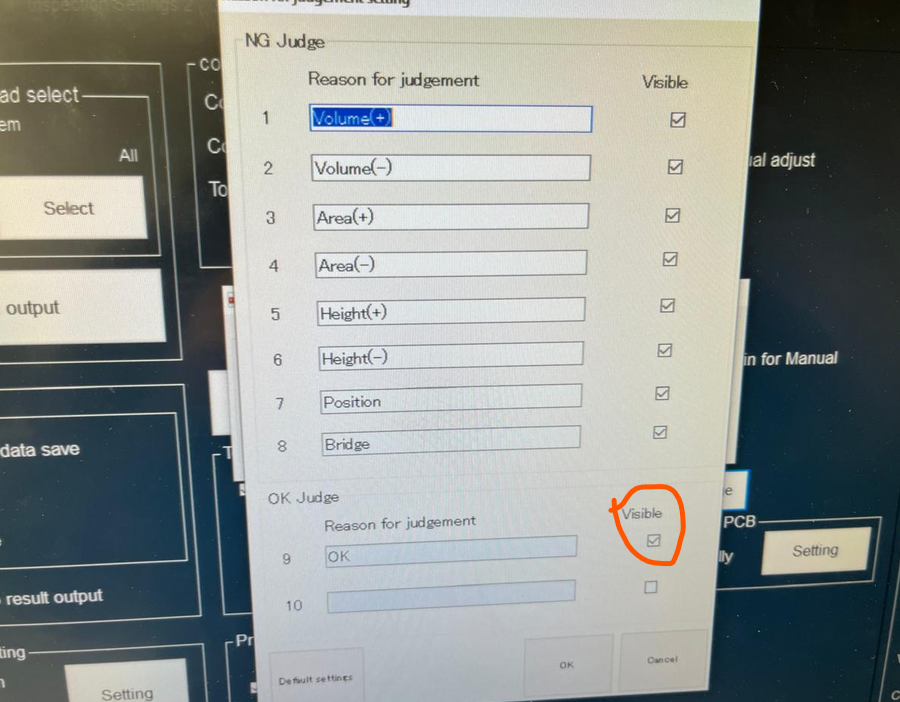

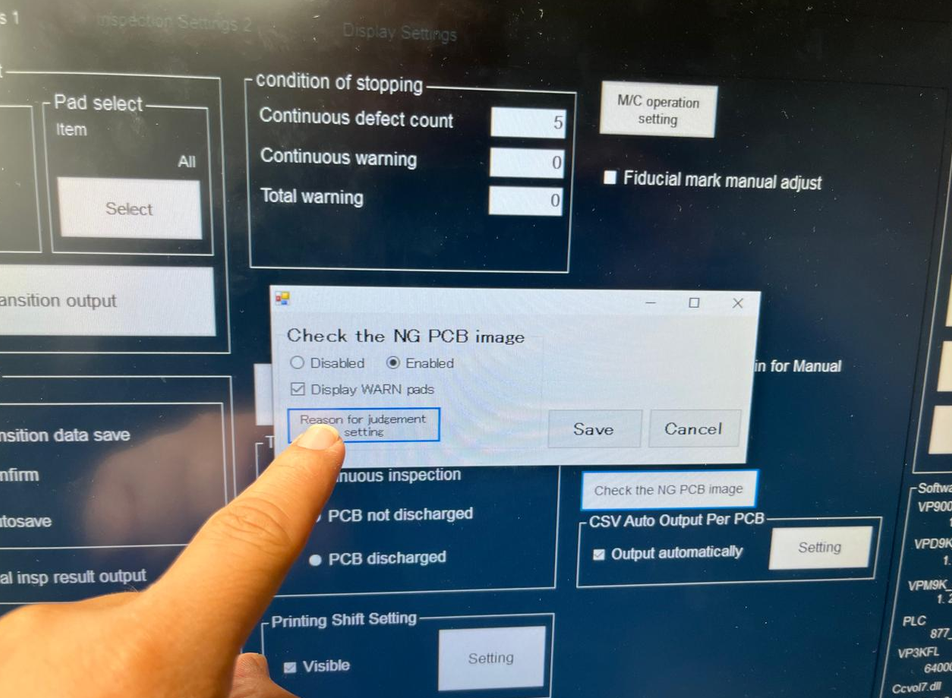

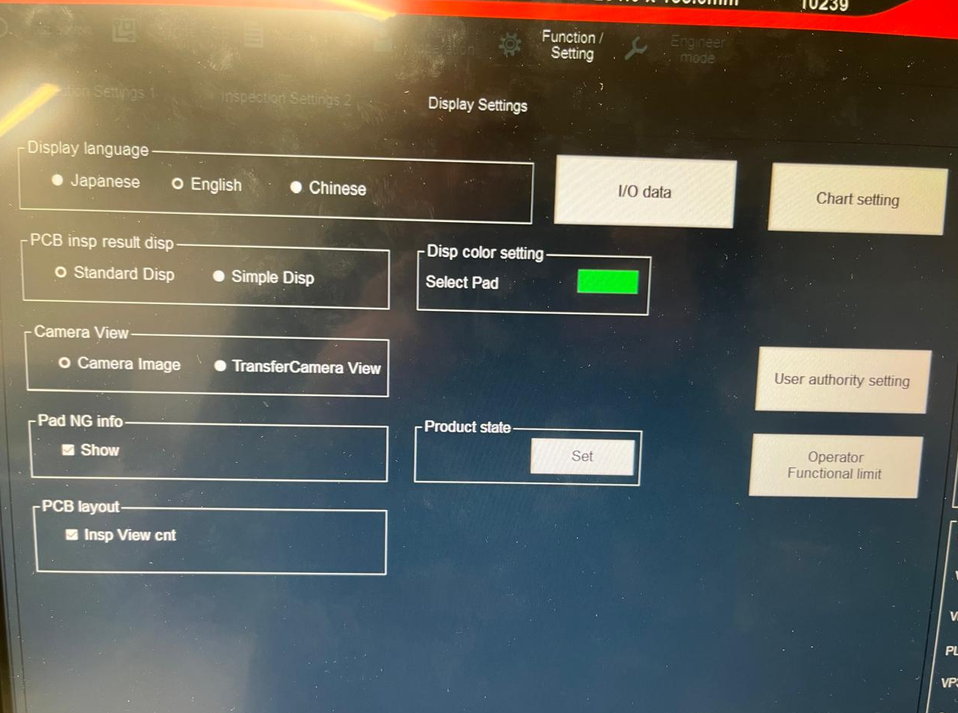

Hello Ernesto., Hello Ernesto, please check in your SPI the same Settings of the below pictures, after each pictures please read my remarks Please push the option "Check the NG PCB Image" Compare Settings and push "Reason for judgement settings" Please uncheck and check the option ok Will show this message for restart the machine, please push ok and Try one more time Regards Angel Sosa Application Engineer Direct: +52 [phone]| [email] Omron Mexico Niba Corporate Tower | Av. de las Américas 1462, 8th Floor | Country Club | Guadalajara, Jalisco 44610, Mexico automation.omron.com This is a confidential message. If received in error, delete it and notify the sender.
Customer Customer reply | Aug 10, 2026 at 3:23 PM

Thanks for the info, when the line or machine should be available for stop, I will try, have a nice day, thanks for the support, Get Outlook for Android ________________________________











Omron Application Engineer Omron reply | Aug 12, 2026 at 10:46 AM

Hello Ernesto., Were you able to do the activity? What was the result? Regards Angel Sosa Application Engineer Direct: +52 [phone]| [email] Omron Mexico Niba Corporate Tower | Av. de las Américas 1462, 8th Floor | Country Club | Guadalajara, Jalisco 44610, Mexico automation.omron.com This is a confidential message. If received in error, delete it and notify the sender.
Omron Application Engineer Omron reply | Aug 18, 2026 at 12:24 PM

No sanitized conversation text indexed.
