Ticket #1709476

Tickets with IDs 1709789 is merged into this ticket.

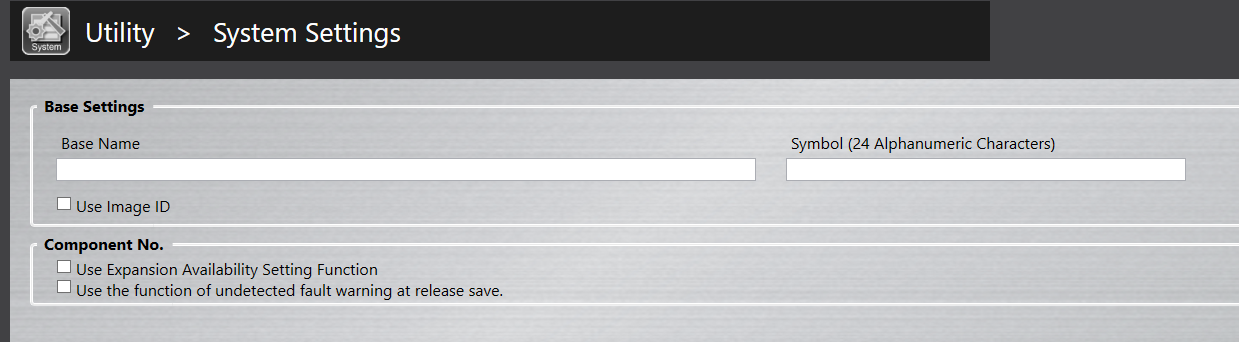

Merged from ticket 1709789 Subject: RE: Can OMRON Inspection Criteria Be Scoped to a Single Assembly? Description: Thank you, Jeremy! I wasn’t aware that this option existed, and I’d like to learn more about it. Is this feature commonly used by other customers? I went to Settings in the Utilities of v‑TS and noticed that the “Use Expansion Availability setting function” is not checked. I assume this is because we are using a shared library. So, if we check this function (preventing a part from syncing to the library), then define a criterion for that part number to be used on a specific assembly number, and afterwards we un‑check the “Use Expansion Availability setting function,” will the criterion that was applied to the part in that specific assembly now sync to the library? Can the “Use Expansion Availability setting function” be toggled on and off frequently without causing issues? Best regards, Thida From: [email] Sent: Thursday, February 26, 2026 10:54 AM To: Sanroma, Chanthida (US) ; [email] [email] Cc: Bjerke, Erik (US) ; Gallagher, Timothy A (US) Subject: Re: Can OMRON Inspection Criteria Be Scoped to a Single Assembly? External Email Alert This email has been sent from an account outside of the BAE Systems network. Please treat the email with caution, especially if you are requested to click on a link, decrypt/open an attachment, or enable macros. For further information on how to spot phishing, access “Cybersecurity OneSpace Page” and report phishing by clicking the button “Report Phishing” on the Outlook toolbar. Thida, There is a function called Expansion Availability. This is a setting in Utilities in v-TS. If Expansion Availability is enabled, a part will NOT sync to the library. Best regards, Jeremy Orbach Application Engineer – Inspection Systems Direct: [phone] | [email] Omron Automation Americas 2895 Greenspoint Parkway, Suite 100, Hoffman Estates, IL 60169 automation.omron.com From: Sanroma, Chanthida (US) Sent: Thursday, February 26, 2026 9:52:06 AM To: AOISupport-US-A ; Jeremy Orbach / OEI ; Jeremiah Soliz / OEI Cc: Bjerke, Erik (US) ; Gallagher, Timothy A (US) Subject: Can OMRON Inspection Criteria Be Scoped to a Single Assembly? Good morning Omron Team, Once a part number is added to the library and its inspection criteria are defined, those criteria are applied to every assembly that uses that part number. Is there a way to set up the inspection criteria so they are saved locally, affecting only a specific assembly number, rather than being used by all assemblies that share the same part number? For example, suppose we have a part number that, in Assembly A, requires a solder fillet height of 25 %, but the same part number, when used in Assembly B, must meet a fillet‑height requirement of 75 %. Any guidance on how to create assembly‑specific inspection criteria, or whether this capability is supported in the current system, would be greatly appreciated. Thank you for your assistance. Best regards, Thida Chanthida Sanroma Process Engineer, EW-IMC Front End Electronic Combat Systems BAE Systems, Inc. T: (603) 885-9532 | M: ([phone] | E: [email] 65 Spitbrook Road, Nashua, NH 03061, NHQ01-423 www.baesystems.com Connect with BAE Systems: WARNING! This is an email from an external party. Do not click on any link or open any attachment if you cannot ascertain that it is safe.

Subject: RE: Can OMRON Inspection Criteria Be Scoped to a Single Assembly? [ AOI Case# 1709476] has been resolved. Description: Hello Thida, Thank you for your recent inquiry. We’re pleased to inform you that your case 1709476 has been resolved. As always, we're here to support you. If you need assistance in the future, please don’t hesitate to reach out to us via our support email: [email] If you believe further support is needed regarding this case, simply reply to this message with a brief status update, and we’ll be happy to assist you. Jeremy Orbach Your Omron AOI Technical Support Group
