Ticket #1783775

Tickets with IDs 1783802 is merged into this ticket.

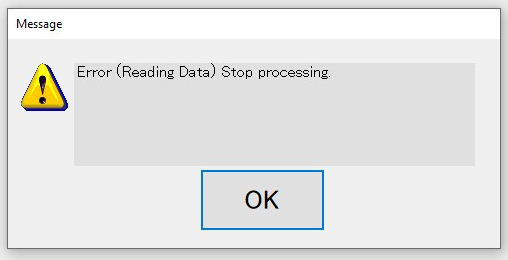

Merged from ticket 1783802 Subject: Error creating new program for SPI from locked ticket:1648219 Description: Please check ticket [#{ticket.id}}] for the full message before responding. Last Public comment: Thinh D Banh : Hello AOI team, Please see attached of the new gerbers file sent over from stencil shop as requested but we still have an error message below. Thank you, From: Robert R Brandt Sent: Wednesday, June 3, 2026 2:57 PM To: 'AOI Tech Support - US' Cc: Thinh D Banh Subject: RE: Error creating new program for SPI [Case: 1648219] Hello, We are having the same problem as the above case which got resolved when we received a different Gerber file from the stencil shop. We asked them for a new file and still cannot read it. I will ask Thinh to send you the Gerber file to see if you can open it or not. We tried to open a Gerber file from six moths ago or so that was used to create a SPI program and had the same read error so we think there is something else going on. Thank you, Robert Brandt Libra Industries 1250 American Pkwy Richardson, TX 75081 From: AOI Tech Support - US Sent: Thursday, December 4, 2025 3:00 PM To: Robert R Brandt Subject: Re: Error creating new program for SPI [Case: 1648219] Hello Robert, Is the issue fixed? if you still need support please share inspection program On Tue, 2 Dec at 2:01 PM, AOI Tech Support - US wrote: Hello Thinh, There is a problem with your file you attached with the email. I have exact same error on two different stations and cannot read the file. Please try to find a different stencil gerber file. Best Regards On Tue, 2 Dec at 12:50 PM, Thinh D Banh wrote: Hello Tony, I found what looks to be an error with the software, I did try to reprogram name and avoid characters such [email] etc, but i still get the Error message (Reading Data). I’ve attached the stencil gerbers file. Can you please assist? Thank you, From: Robert R Brandt Sent: Wednesday, November 26, 2025 6:20 PM To: Thinh D Banh Subject: Fwd: Error creating new program for SPI [Case: 1648219] Check this out please. Robert Brandt Libra Industries Sent from my iPhone Begin forwarded message: From: AOI Tech Support - US Date: November 26, 2025 at 4:54:38 PM CST To: Robert R Brandt Subject: Re: Error creating new program for SPI [Case: 1648219] Reply-To: AOI Tech Support - US  Hello Robert, It sounds as if a recently created program may be causing this issue. If a program is created and program name or a part number in that program have some very unique characters, this sometimes causes issues with software as it cannot understand character. Please review the last 'good' program created, look for characters such [email] etc in program name or a part number in that program. If it's a part number delete that part number from parts library. If it's in program name, remove characters from name. Thanks, On Wed, 26 Nov at 4:10 PM, Robert R Brandt wrote: Hello, Yesterday everything was okay. Now, when we try to create a new program, select create from gerber data, open gerber file, the board picture appears but when we click Next, it errors out saying Error (Reading Data) Stop processing. It did this 10 times in a row, then opened one that we had been trying, and now won’t read again over and over. Any suggestions? Robert Brandt Libra Industries Sent from my iPhone This email has been scanned for spam and viruses by Proofpoint Essentials. Clickhere to report this email as spam. Attachments :1. IBM-3577352-02-F-Top_BRS_1409773.gbr.

COLAB NOTE UPDATE This case has received a Note from a Collaborator and has been TAG and Possibly Reopened. Please verify if any further action is required.
