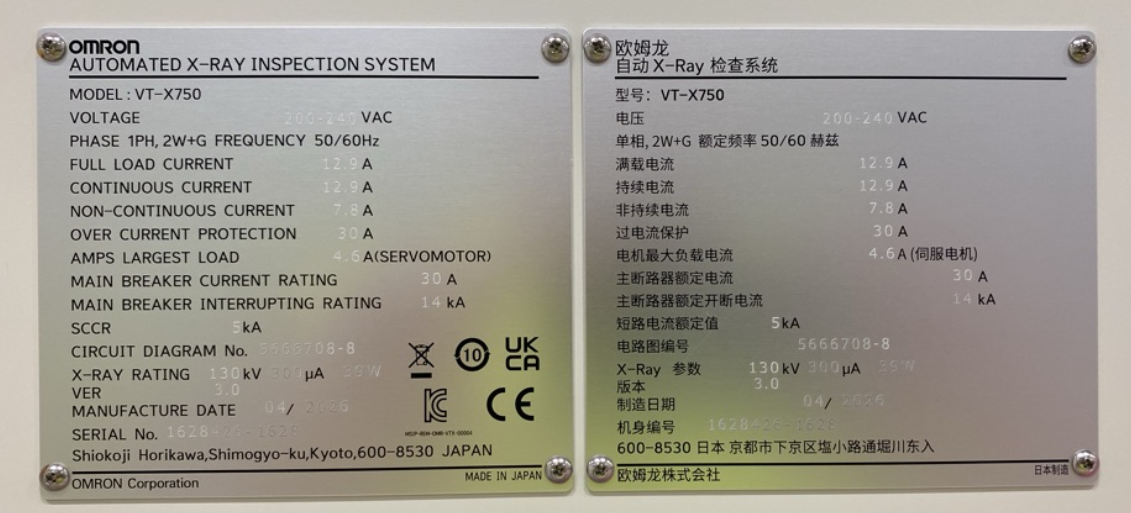

Hello Omron team, This is Orlando, I'm TestEngineer here in the Flex Memphis site, I will support the Vision portion with my co-worker @Musa Al-Absawi . Could you provide us a quote for a Calibration kit and also some spares that used to damage soon as belts or batteries, anything else that you think we have to buy in advance? This is going to be the shipping address: 6380 E Holmes Rd, Memphis, TN 38141 And this is our AXI machine: [cid:1b25c280-5925-4d55-8e53-b31bf539fa89] Saludos / Best Regards Jorge Herrera Test Engineer [A picture containing logo Description automatically generated] 6380 E Holmes Rd, Memphis, TN 38141. Cell Phone: +52 33 16712115 [cid:dd2a4731-d6e6-4585-9dbe-94fe75a8d92a] [cid:b6ef4905-50ff-4b73-8a1e-25e980f3517a] [cid:f6eb85ff-f229-4a48-ab65-d2ceeafa7104] [cid:3a293592-6b5d-43ae-ae9f-4a28fbc6e37b] [cid:8b9907dc-5729-4543-a66e-4f074ab4856f] Legal Disclaimer : -------------------------- The information contained in this message may be privileged and confidential. It is intended to be read only by the individual or entity to whom it is addressed or by their designee. If the reader of this message is not the intended recipient, you are on notice that any distribution of this message, in any form, is strictly prohibited. If you have received this message in error, please immediately notify the sender and delete or destroy any copy of this message!
Conversation
Engineer and customer thread
2 messages
FV
Francisco VillalpandoOmron reply | Aug 21, 2026 at 4:47 PM
Hello Orlando, The only calibration kit available for this machine is the same kit our service engineers use to perform the calibration. It consists of two different calibration plates. Is this the kit you would like us to provide a quote for? There is also an additional plate available specifically for performing MSA (Measurement System Analysis) on the equipment. As a side note, machine calibration is normally required only when one of the following components is replaced: X-ray tube FPD Laser sensor Camera Calibration is also required if the machine is moved to a different location. Other than these situations, there is generally no need to perform a full calibration. The equipment automatically performs a brightness adjustment using an internal tungsten filament located on the conveyor, which helps maintain consistent X-ray image brightness during normal operation. Please let me know which plates you would like included in the quotation. Francisco Villalpando Engineering Supervisor Direct: +[phone] [email] (Non-ITAR)
C
CustomerCustomer reply | Aug 21, 2026 at 4:58 PM
Hello Francisco, We are interested in the first Two Plates cal kit "The only calibration kit available for this machine is the same kit our service engineers use to perform the calibration. It consists of two different calibration plates." We are in a general ramp-up phase on the site and we will need to be constantly moving the machines. Also, in a kit of spares, please "that used to damage soon as belts or batteries, anything else that you think we have to buy in advance" Saludos / Best Regards Jorge Herrera Test Development Engineer [A picture containing logo Description automatically generated] 6380 E Holmes Rd, Memphis, TN 38141. Cell Phone: +[phone] [cid:fb208a6e-f998-4fe2-8be3-3da8c5d1664c] [cid:220d63f2-fbbb-4ae3-9fcc-ae37a48910bc] [cid:8d85ed1b-9d1e-43f2-9f02-b7358947f845] [cid:5a022649-231a-4f6d-9544-f7d3365ae085] [cid:284c6764-b02d-467f-9a23-1ee5ffd7bcfb] ________________________________
